CZB5C 120A 48 Volt Forklift Battery Charger , Forklift Truck Battery Chargers

China CZB5C 120A 48 Volt Forklift Battery Charger , Forklift Truck Battery Chargers supplier
CZB5C 120A 48 Volt Forklift Battery Charger , Forklift Truck Battery Chargers supplier CZB5C 120A 48 Volt Forklift Battery Charger , Forklift Truck Battery Chargers supplier CZB5C 120A 48 Volt Forklift Battery Charger , Forklift Truck Battery Chargers supplier

Large Image :  CZB5C 120A 48 Volt Forklift Battery Charger , Forklift Truck Battery Chargers

Product Details:

Place of Origin: China
Brand Name: LAKER
Certification: CE,ISO9001
Model Number: CZB5C 48V/120A

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton, Standard Wooden Pallet
Delivery Time: 15 days After Order Confirmation and Deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 pcs per month
Contact Now
Detailed Product Description
Model: CZB5C 48V/120A Type: Forklift Battery Charger
Output Voltage: 48V Output Current: 120A
Application: Electric Forklift Brand: LAKER
Certificates: CE,ISO9001 Phase: Three Phases 380v
Battery Parameter: 48V 700-960Ah Size: 526×360×882 Mm

CZB5C 120A 48 Volt Forklift Battery Charger , Forklift Truck Battery Chargers



Model: CZB5C 48V/120A

Phase: Three Phases





Introduction:



CZB5C Series Intelligent Charger is the organic combination of leakage transformer, technology of Silicon-controlled rectifier and Microcomputer Control. This device could optimize Wsa+Pulse charging characteristic curve. As charge voltage of battery increases, charge current decreases automatically.

Pulse charge would be performed before gas emissions or in late stage of recharge. On the premise of guarantee adequate battery power, this device would lower greatly internal temperature and reduce gas emissions of battery, prolong the life of battery effectively and raise the charging efficiency eventually.

The whole product has simple structure, convenient operation, complete functions and high efficiency.





Application:



This device would be applicable to recharge of lead-acid batteries which could be used in

various electric vehicle such as power pallet trucks, fork-lift truck, lift truck, electronic tour bus.





Product Catalogs:

  1. Three-phase AC(3/PE) input power voltage.
Specification Input current A Input power kVA

Output current

DC A

Battery parameters outline dimension mm

Net weight

kg

@220V @380V @415V V Ah
8.5h-11h
D48V/55A 10.8 6.3 5.7 4.1 55 48 320-440 466×361×785 62
D48V/65A 12.8 7.4 6.8 4.9 65 48 375-520 466×361×785 65
D48V/80A 15.7 9.1 8.3 6.0 80 48 465-640 466×361×785 68
D48V/100A 19.7 11.4 10.4 7.5 100 48 580-800 526×360×882 86
D48V/120A 23.6 13.7 12.5 9.0 120 48 700-960 526×360×882 95
D80V/65A 21.3 12.3 11.3 8.1 65 80 375-520 526×360×882 87
D80V/70A 23.0 13.3 12.2 8.8 70 80 405-560 526×360×882 87
D80V/80A 26.2 15.2 13.9 10.0 80 80 465-640 526×360×882 89
D80V/100A 32.8 19.0 17.4 12.5 100 80 580-800 526×360×882 95
D80V/120A 39.4 22.8 20.9 15.0 120 80 700-960 526×360×882 107





Product Features:

  • The Voltage and current double closed-loop framework is applied in the PID control technology. This device can achieve dynamic tracking and automatic adjustment of charge parameters.
  • Nixie tube would display charger parameters such as battery voltage, charge current, capacity and recharged time. It could als show the code of charging curve and fault. High-intensity LED lamp would indicate running state of this charging unit.
  • Functions of automatic detection, delaying and soft-start, Function of temperature compensation. The voltage of tipping point of gas emission would change with the temperature.
  • Tis device could also record data as the end of recharge for 30 times.
  • Protection and alarm functions of open crcuit, reverse connection, over load and short circuit breakdown.
  • Protection and alarm functions of overheat fault of transformer and module.
  • Equalization charge could ensure caacity consistency of battery packs, function of automatic initial charge, function of desulfuration charge.

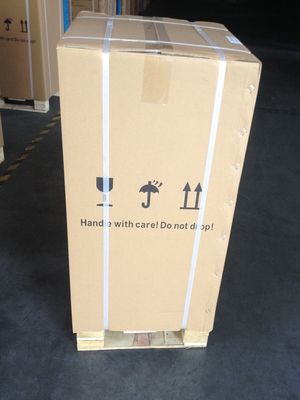

  • CZB5C 120A 48 Volt Forklift Battery Charger , Forklift Truck Battery Chargers Packaging
  •
  • CZB5C 120A 48 Volt Forklift Battery Charger , Forklift Truck Battery Chargers
